室外光缆GYXTW-4B1架空管道监控4芯光缆线单模光纤
Unitube Light-armored Cable
产品描述 Description
GYXS/GYXTW室外光缆的结构是将250μm光纤套入高模量材料制成的松套管中，松套管内填充防水化合物。松套管外用一层双面涂塑钢带纵包，钢带和松套管之间加阻水材料以保证光缆的紧凑和纵向阻水，两侧放置两根平行钢丝后挤制聚乙烯护套成缆。
The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

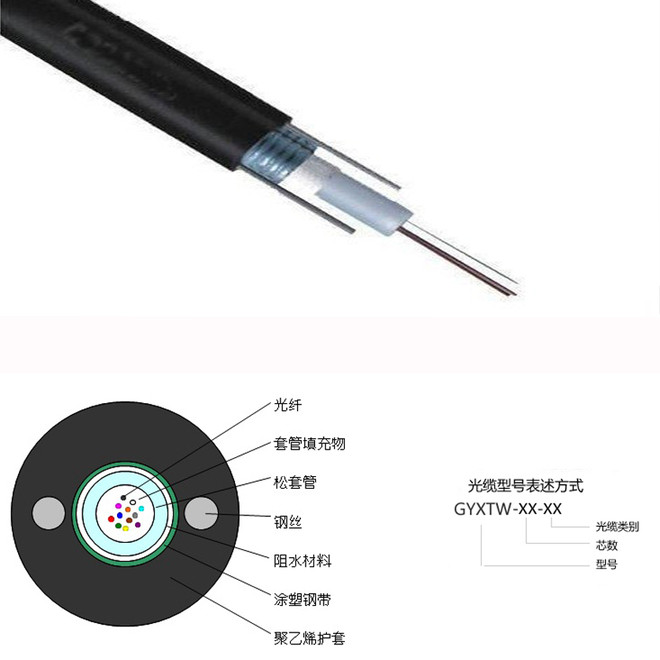

光缆结构图
Cable Structure
产品特点Characteristics
l 具有很好的机械性能和温度特性
Good mechanical and temperature performance
l 松套管材料本身具有良好的耐水解性能和较高的强度
High strength loose tube that is hydrolysis resistant
l 管内充以特种油膏，对光纤进行了关键性保护
Special tube filling compound ensure a critical protection of fiber
l 良好的抗压性和柔软性
Crush resistance and flexibility
l 双面涂塑钢带（PSP）提高光缆的抗透潮能力
PSP enhancing moisture-proof
l 两根平行钢丝保证光缆的抗拉强度
Two parallel steel wires ensure tensile strength
l 直径小、重量轻、容易敷设
Small diameter, light weight and friendly installation
l 较长的交货长度
Long delivery length
产品标准Standards
长霆光电(上海)GYXS/GYXTW光缆符合YD/T 769-2003标准。
changting(SH) GYXS/GYXTW cable complies with Standard YD/T 769-2003.
光学特性Optical Characteristics
|
|
|
|
G.652 |
G.655 |
50/125 μm |
62.5/125 μm |
|
|
|
|
|
|
|
|
|
衰减 Attenuation（+20℃） |
@ 850 nm |
|
|
|
≤ 3.0 dB/km |
≤ 3.0 dB/km |
|
@1300 nm |
|
|
|
≤ 1.0 dB/km |
≤ 1.0 dB/km |
|
|
@1310 nm |
|
≤ 0.36 dB/km |
≤ 0.40 dB/km |
|
|
|
|
@1550 nm |
|
≤ 0.22 dB/km |
≤ 0.23 dB/km |
|
|
|
|
带宽（A级） Bandwidth（Class A） |
@ 850 nm |
|
|
|
≥ 500 MHz·km |
≥ 200 MHz·km |
|
@1300 nm |
|
|
|
≥ 1000 MHz·km |
≥ 600 MHz·km |
|
|
数值孔径 Numerical Aperture |
|
|
|
0.200 ± 0.015 NA |
0.275 ± 0.015 NA |
|
|
光缆截止波长Cable Cut-off Wavelength lcc |
|
≤ 1260 nm |
≤ 1450 nm |
|
|
|
结构参数 Technical Parameters
|
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) |
光纤数 Fiber Count |
光缆重量 Cable Weight kg/km |
允许拉伸力 Tensile Strength 长期/短期 Long/Short Term N |
允许压扁力 Crush Resistance 长期/短期 Long/Short Term N/100mm |
弯曲半径 Bending Radius 静态/动态 Static/Dynamic mm |
|
GYXS/GYXTW-2~12Xn |
2~12 |
100 |
短期1500N，长期600N或1KM缆重中取最大值 |
300/1000 |
10D/20D |
|
|
|
|
|
10D/20D |
|
|
GYXS/GYXTW-2~12Xn |
2~12 |
124 |
1000/3000 |
10D/20D |
|
|
GYXS/GYXTW-14~24Xn |
14~24 |
147 |
1000/3000 |
10D/20D |
|
|
GYXS/GYXTW-26~36Xn |
26~36 |
150 |
1000/3000 |
10D/20D |
|
|
GYXS/GYXTW-38~48Xn |
38~48 |
207 |
1000/3000 |
10D/20D |
储存、使用温度：-40℃至+70℃
Storage/Operating Temperature: -40℃ to +70℃
注Note：
a.型号的后缀Xn表示选用的光纤类型，详见光纤型号说明;
Suffix Xn denotes fiber type and see details cable illustration.
b.套管和光纤的颜色排列见色谱表;
The colour arrangements of fiber and tube are specified in the colour identification table.
c.加强件外侧聚乙烯护套的最小厚度最小值为0.8mm.
The nominal value of the PE sheath minimum thickness outside of the strength member is 0.8mm.
d.12芯以下光缆为钢带不扎纹结构；若客户要求扎纹，需在合同中特别说明。
The steel tape is not corrugated in the cable with 12 fibers below. If the corrugated steel tape is requested, it should be specified in contract.
